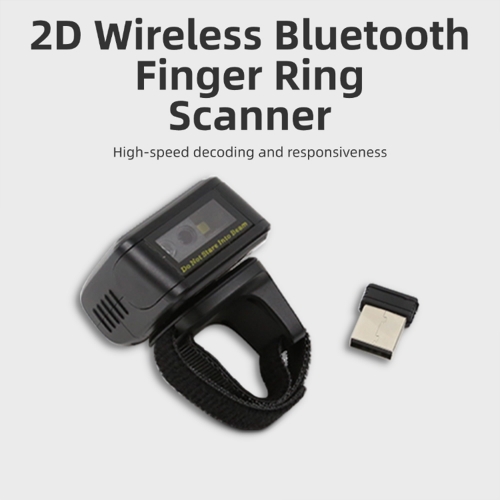

| Features | High-speed decoding, responsive | √ |
| Strong versatility: USB, USB-COM and other interfaces are provided | √ | |
| Equipped with vibration feedback prompts | √ | |
| Compact, lightweight, ergonomically designed and comfortable in the hand | √ | |
| Support remote online upgrade | √ | |

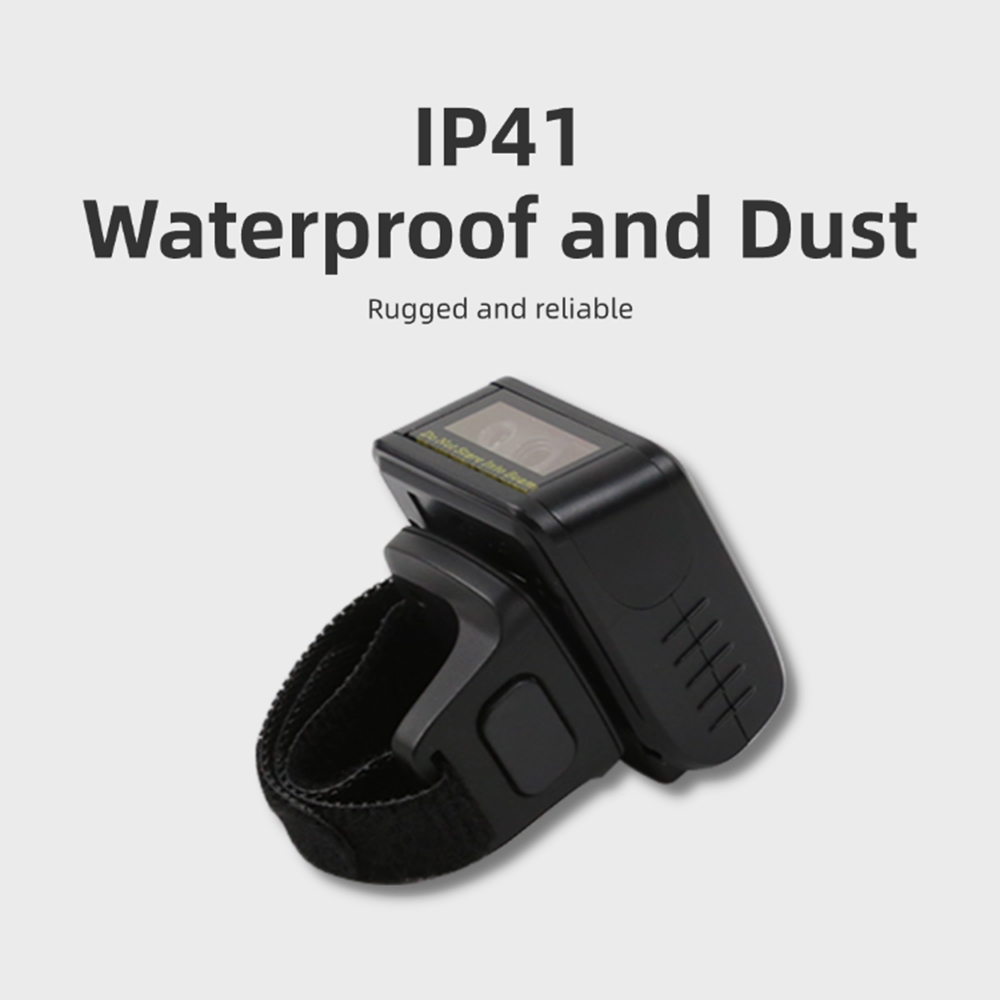

| Outstanding durability: IP54 rated for dust and water resistance, while withstanding a 1.5- meter drop to a concrete floor | √ | |
| Base | × | |
| Wireless design | √ | |
| Specifications | Scan mode | Image scanning |
| Communication interface | USB charging connector | |
| Wireless communication distance | Wireless Bluetooth BT4.0(support protocols 2.0, 3.0,4.0)requiresa Bluetooth adapter to connect to your computer |
|
| Interface type | ||
| Prompt way | Buzzer, LED | |
| How it's set up | ||
| Housing material | ABS+TPR | |
| Cable standards | ||
| Internal storage | 512K | |
| Sensors | CMOS | |
| Resolution | 750*480 | |
| Light source | Red LED (625±10nm). | |
| Scan angle | 360°, ±65°, ±60° | |
| Scan rate | Horizontal speed: 5 in. per second. (12.7 cm) | |
| Field of view | ||
| Print contrast | ≥30% | |
| Decode the kind | 2D Airline 2 of 5，Aztec Code , Data Matrix ，Grid Matrix Code， GS1 Composite Codes ，Maxi Code，PDF417， QR Code 1D Codabar，Codablock A，Codablock F，Code 11 ， Code32; Code 39 ，Code 93，Code 128，EAN-13 & EAN-8 ，Full ASCII Code39 ， GS1 Data Bar，Industrial 2 of 5，Interleaved 2 of 5，ISBN / ISSN，Matrix 2 of 5 ， MSI / Plessey ，UPC-A/ UPC-E |
|
| Minimum resolution | ||
| Depth of field | EAN13(13mul) 50mm -195mm Code39(5mil) 50mm -105mm FDF417(6.67mil) 35mm - 135mm Data Matrix(10mil) 35mm - 140mm QR Code(15mil) 30mm - 165mm |
|
| Input voltage | （3.3V~4.2V）±5% | |
| Current | 240mA | |
| Battery | 320MAH | |
| Charging time | 2-3 hours | |
| Battery life | ||
| Temperature | -10°C-60°C | |
| Humidity | -20°C-60°C | |
| Ambient brightness | 0-100,000 lx | |
| Seismic resistance | It can withstand a 1.5m drop in the air | |
| Dimensions (mm) | 50 x 36 x 45 mm | |
| Weight (g) | 38g | |
| Carton Packing Details | Dimensions (mm) | 590mm×350mm×250mm |
| Gross Weight (kg) | 9 | |
| Quantity(pcs) | 50 |
