| Features | High-speed decoding, responsive | √ |
| Strong versatility: USB, USB-COM and other interfaces are provided | √ | |
| Equipped with vibration feedback prompts | √ | |
| Compact, lightweight, ergonomically designed and comfortable in the hand | √ | |

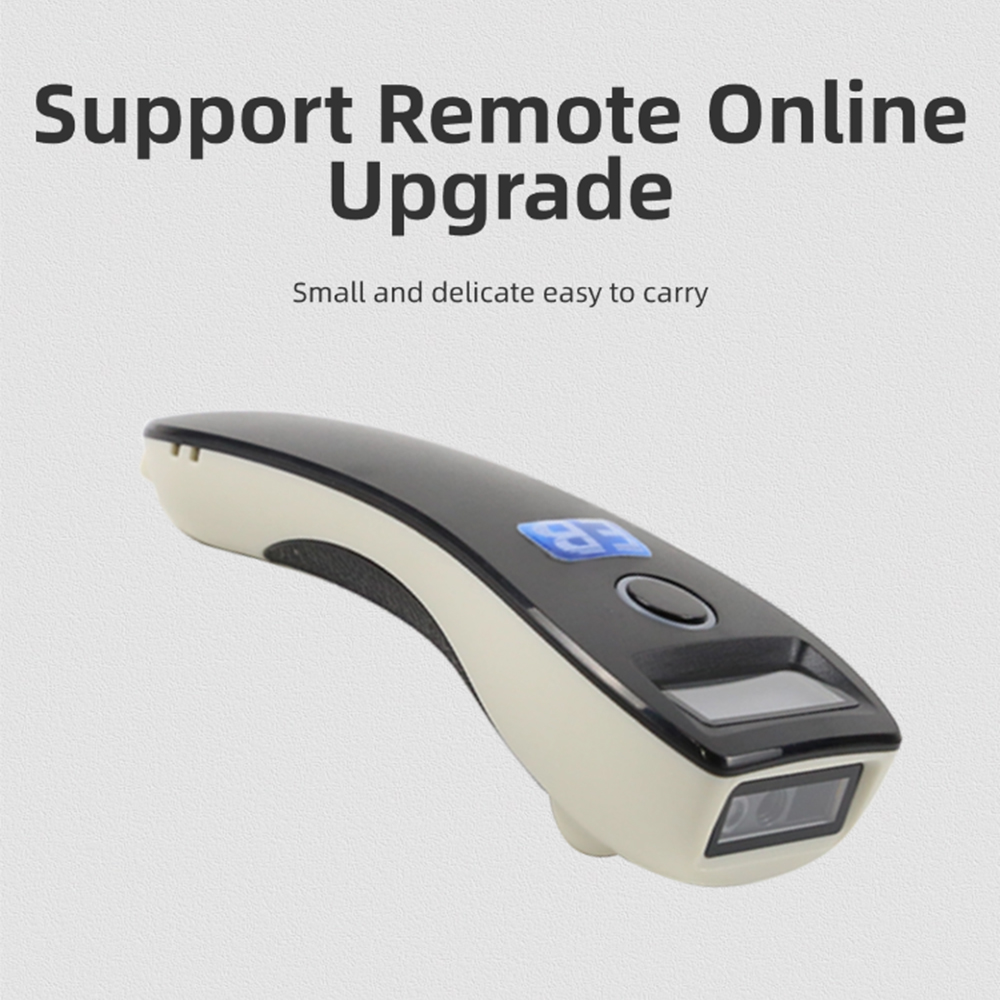

| Support remote online upgrade | √ | |
| Outstanding durability: IP54 rated for dust and water resistance, while withstanding a 1.5- meter drop to a concrete floor | √ | |
| Base | × | |
| Wireless design | √ | |
| Specifications | Scan mode | Key trigger/ autosensing/ continuous scanning |
| Communication interface | USB-HID /USB-COM | |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment) Bluetooth: 0-20m (open environment) | |
| Interface type | ||
| Prompt way | Buzzer, LED light, vibration motor | |
| How it's set up | Manually scan the setup codes one after the other | |
| Housing material | ABS+PC | |
| Cable standards | USB Straight Line 1m | |
| Internal storage | 900K | |
| Sensors | 300,000 CMOS | |
| Resolution | 640*480 | |
| Light source | White LED | |
| Scan angle | ±60°, ±60°,360° (Elevation angle, declination angle, corner of rotation) | |
| Scan rate | 120 fps | |
| Field of view | 48° (H) x 30° (V) | |
| Print contrast | 15% minimum | |
| Decode the kind | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey,etc 2D: QR Code,Data Matrix,PDF417,Micro QR, Aztec,etc,Support mobile phone screen code reading | |
| Minimum resolution | 1D 3MIL;2D 5MIL | |
| Depth of field | QR (20mil) 10~130mm Data Matrix(10mil) 20~100mm PDF 417 (7mil) 25~105mm EAN-13 (13mil) 30~175mm Code 39 (8mil) 25~145mm Code 128 (7mil) 25~110mm | |
| Input voltage | DC 5V±10% | |
| Current | Working: 350 mAh; Standby: 130 mAh | |
| Battery | 950mAh lithium-ion battery | |
| Charging time | About 2 hours | |
| Battery life | 72 hours (standby), 6-7 hours (working: scan every 5 seconds) | |
| Temperature | 0°C-50°C (working); -40°C~+60°C (storage). | |
| Humidity | 5%-95% non-condensing | |
| Ambient brightness | Max.5,000 Lux (fluorescent) | |
| Seismic resistance | It can withstand a 1.5m drop in the air | |
| Dimensions (mm) | 122mm×42mm×30.5mm (barcode scanner) | |
| Weight (g) | 60g (net weight) | |
| Carton Packing Details | Dimensions (mm) | 550mm×353mm×220mm |
| Gross Weight (kg) | 7.25 | |
| Quantity(pcs) | 50 |
