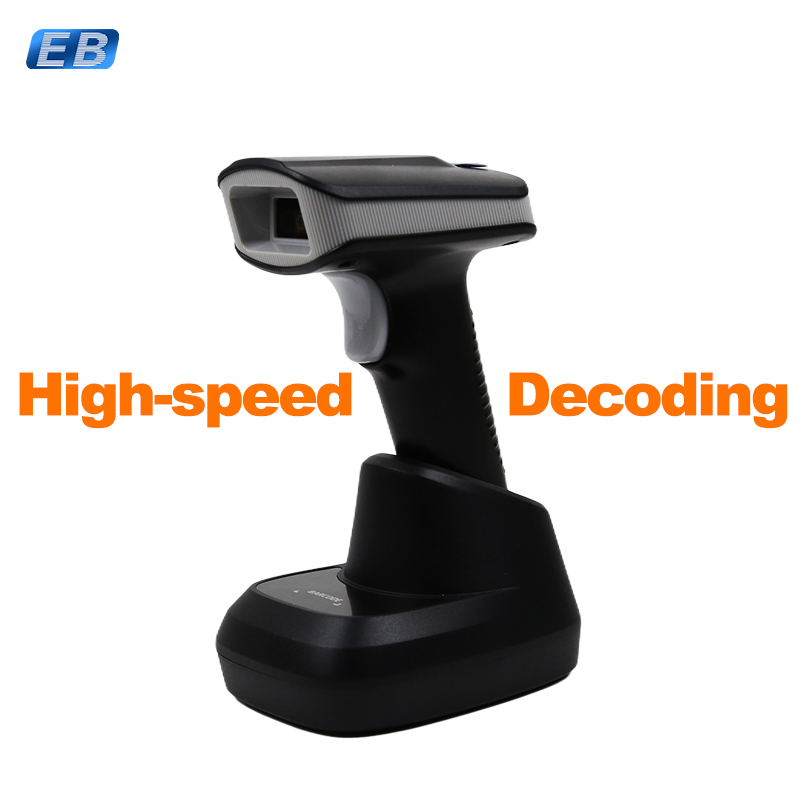

| Features | High-speed decoding, responsive | √ |
| Strong versatility: USB, USB-COM and other interfaces are provided | √ | |
| Equipped with vibration feedback prompts | √ | |
| Compact, lightweight, ergonomically designed and comfortable in the hand | √ | |
| Support remote online upgrade | √ | |
| Outstanding durability: IP54 rated for dust and water resistance, while withstanding a 1.5- meter drop to a concrete floor | √ | |
| Base | √ | |
| Wireless design | √ | |
| Specifications | Scan mode | Push-button trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port | |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment). | |
| Interface type | ||
| Prompt way | Buzzer, LED light, vibration motor | |
| How it's set up | Manually scan the setting code one after the other | |
| Housing material | ABS+PC | |
| Cable standards | USB Straight Line 1m | |
| Internal storage | 500K | |
| Sensors | CMOS | |
| Resolution | 640*480 | |
| Light source | White LED | |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation) | |
| Scan rate | 30 frames/sec | |
| Field of view | 48° (H) x 30° (V) | |
| Print contrast | 15% minimum | |

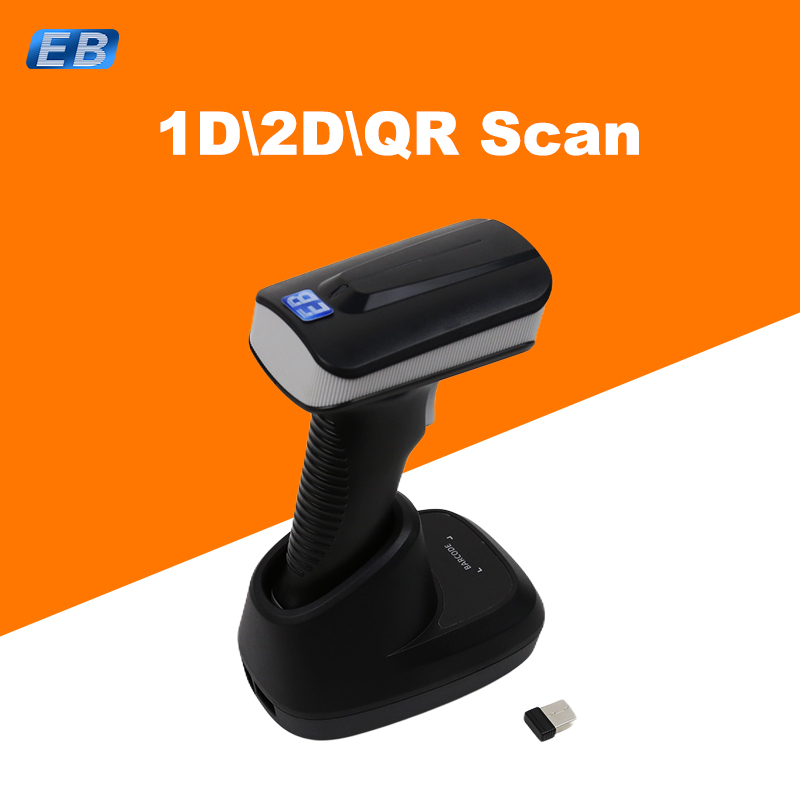

| Decode the kind | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, CodaBar, MSI-Plessey, GS1 Databar(RSS), etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile phone screen code reading | |
| Minimum resolution | 1D code 3MIL;QR code 5MIL | |
| Depth of field | QR (7mil) 30~110mm QR payment code (mobile code) 40~500mm Data Matrix (10mil) 20- 150mm PDF 417 (6.7mil) 20- 150mm EAN- 13 (13.3mil) 30~300mm Code 39 (8.3mil) 40~235mm | |
| Input voltage | DC 5V±10% | |
| Current | Operating: 350 mA, Standby: 130 mA | |

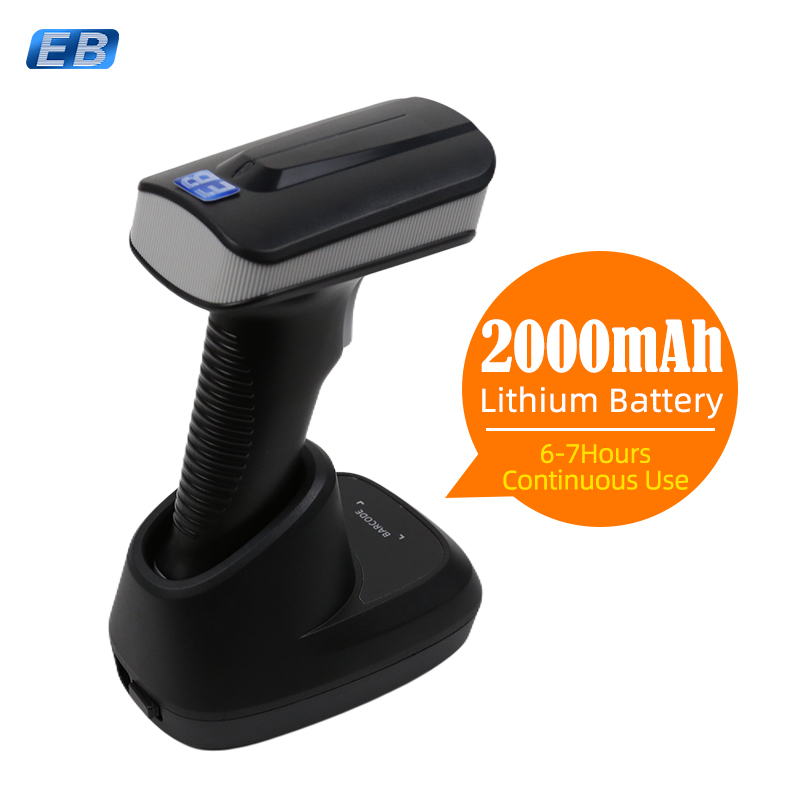

| Battery | 2000mAh lithium-ion battery | |
| Charging time | 4 hours | |
| Battery life | 30 days (standby), 6-7 hours (operating: scanning every 5 seconds) | |
| Temperature | -10°C~50°C(working); -40°C~+60°C (storage). L46 | |
| Humidity | 5%-95% non-condensing | |
| Ambient brightness | Max.5,000 Lux (fluorescent) | |
| Seismic resistance | It can withstand a 1.5m drop in the air | |
| Dimensions (mm) | 157mm× 70mm×112mm (code scanner); 128mm×81mm×89mm (Dock Charger) | |
| Weight (g) | 173.5g (net); 510g (including packaging accessories) | |
| Carton Packing Details | Dimensions (mm) | 192x140x93mm/550x420x440mm |
| Gross Weight (kg) | 0.51kg/16kg | |
| Quantity(pcs) | 1/30 |
