| Features | High-speed decoding, responsive | √ |
| Strong versatility: USB, USB-COM and other interfaces are provided | √ | |
| Equipped with vibration feedback prompts | √ | |
| Compact, lightweight, ergonomically designed and comfortable in the hand | √ | |
| Support remote online upgrade | √ | |
| Outstanding durability: IP54 rated for dust and water resistance, while withstanding a 1.5- meter drop to a concrete floor | √ | |
| Base | × | |
| Wireless design | √ | |
| Specifications | Scan mode | Key trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port | |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment); Bluetooth: 0-20m (open environment). | |
| Interface type | ||
| Prompt way | Buzzer, LED light, vibration motor | |
| How it's set up | Manually scan the setting code one after the other | |
| Housing material | ABS+PC | |
| Cable standards | USB Straight Line 1m | |
| Internal storage | 500K | |
| Sensors | 300,000 global CMOS | |
| Resolution | 640*480 | |
| Light source | White LED | |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation) | |
| Scan rate | 120 frames/sec | |
| Field of view | 48° (H) x 30° (V) | |
| Print contrast | 15% minimum | |
| Decode the kind | 1D:EAN- 13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,CodaBar,Code 128,Code93,ITF- 14,ITF-6,Interleaved 2 of 5, Industrial 2 of 5,Matrix 2 of 5,GS1 Databar(RSS),Code 39,Code 11,MSI-Plessey,etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc., support mobile screen reading | |
| Minimum resolution | 1D code 3MIL;QR code 5MIL | |
| Depth of field | QR(20mil) 15~160mm QR payment code (mobile code) 50~320mm Data Matrix(10mil) 5~110mm PDF 417(7mil) 30~125mm EAN-13(13mil) 30~200mm Code 39(8mil) 20~145mm Code 128(7mil) 15~135mm | |
| Input voltage | DC 5V±10% | |
| Current | Operating: 350 mA, Standby: 130 mA | |

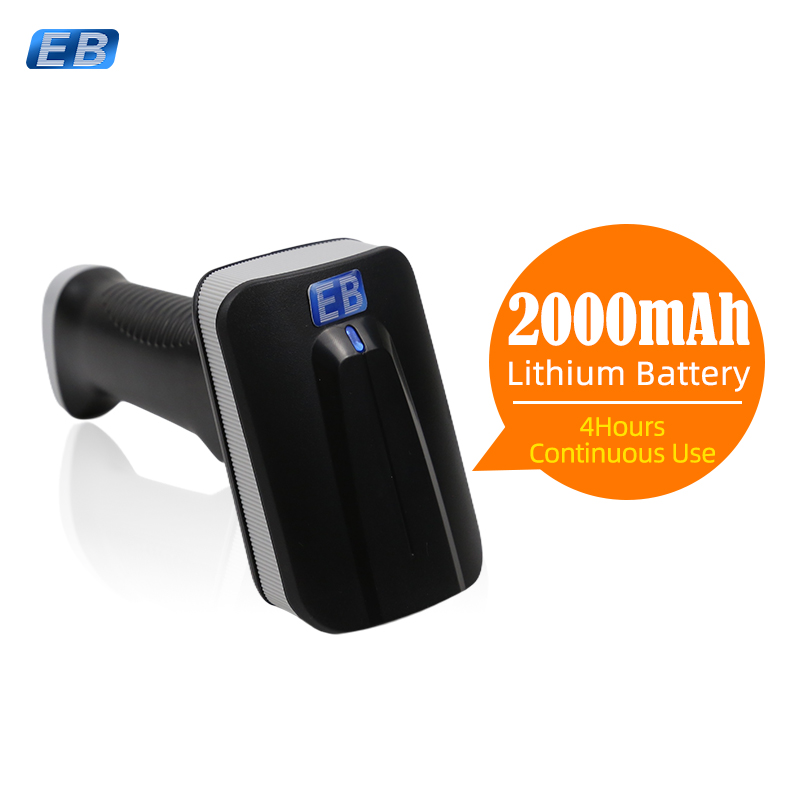

| Battery | 2000mAh lithium-ion battery | |
| Charging time | 4 hours | |
| Battery life | 10 days (standby), 24 hours (working: scan every 5 seconds) | |
| Temperature | 0°C-50°C(Working);-40°C~+60°C(Storage) | |
| Humidity | 5%-95% non-condensing | |
| Ambient brightness | Max.5,000 Lux (fluorescent) | |
| Seismic resistance | It can withstand a 1.5m drop in the air | |
| Dimensions (mm) | 157mm× 70mm×112mm | |
| Weight (g) | 175g | |
| Carton Packing Details | Dimensions (mm) | 200x105x80mm/550x420x440mm |
| Gross Weight (kg) | 0.292kg/15kg | |
| Quantity(pcs) | 1/50 |
